Precast fence molds
CW precast fence molds
Double sided panel molds
|
Double sided panel molds with metal frame
|
Cassette mold
|

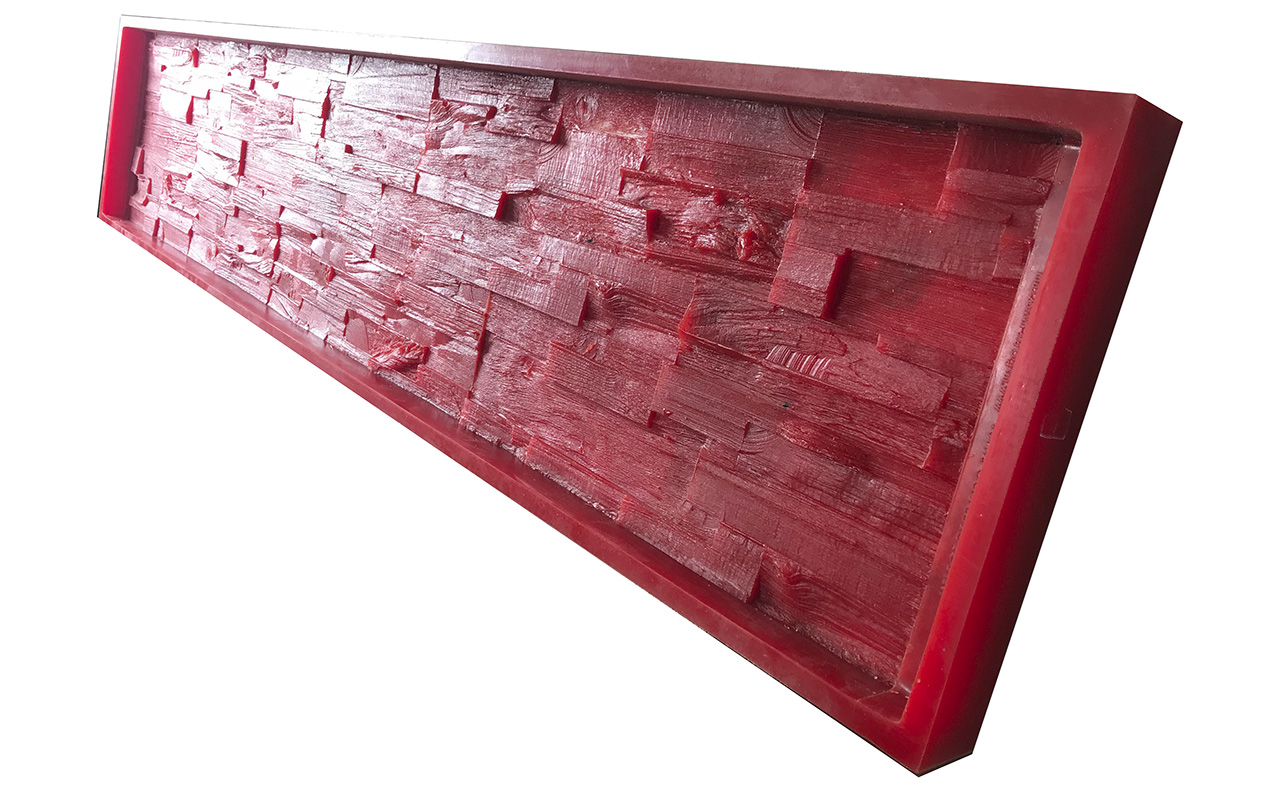

Single sided panel mold
|
Metal frame for single sided panel
|
80 cm base slope segment (no texture)
|
40 cm slope segment with texture
|
80 cm slope segment with texture
|
Platform for slope mold
|
Panel cover mold
|
Panel cover mold with platform
|
Slope cover mold
|
| Index | Fence molds description | Element size |
|---|---|---|
| PANEL MOLDS | ||
| BSL1P-20040A/B | Single sided panel mold | 2070 x 400 x 55 mm |
| TVD/WD-XPS | Polyurethane mold for panel backside | -- |
| TVDP-M | Metal frame for panel mold | -- |
| SLOPE MOLDS AND PLATFORMS | ||
| BSLS151580 | 80 cm slope segment with texture | 800 x 150 x 150 mm |
| BSLS151540 | 40 cm slope segment with texture | 400 x 150 x 150 mm |
| BSLS151580Z | 80 cm base slope segment (no texture) | 800 x 150 x 150 mm |
| TVDMS | Platform for slope mold | 3200 x 150 x 150 мм |
| COVERS AND INSERTS | ||
| BSLPLC17021 | Panel cover | 2000 x 160 x 70 мм |
| BSLPLC17021M | Panel cover with platform | 2000 x 160 x 70 мм |
| BSLPSC3025 | Slope cover | 200 x 160 x 70 мм |
| BSLPSC3025M | Slope cover with platform | 200 x 160 x 70 мм |
| TVDSVK | Mold for groove liner | 200 x 50 x 30 mm |
